PureConnect for Salesforce architecture

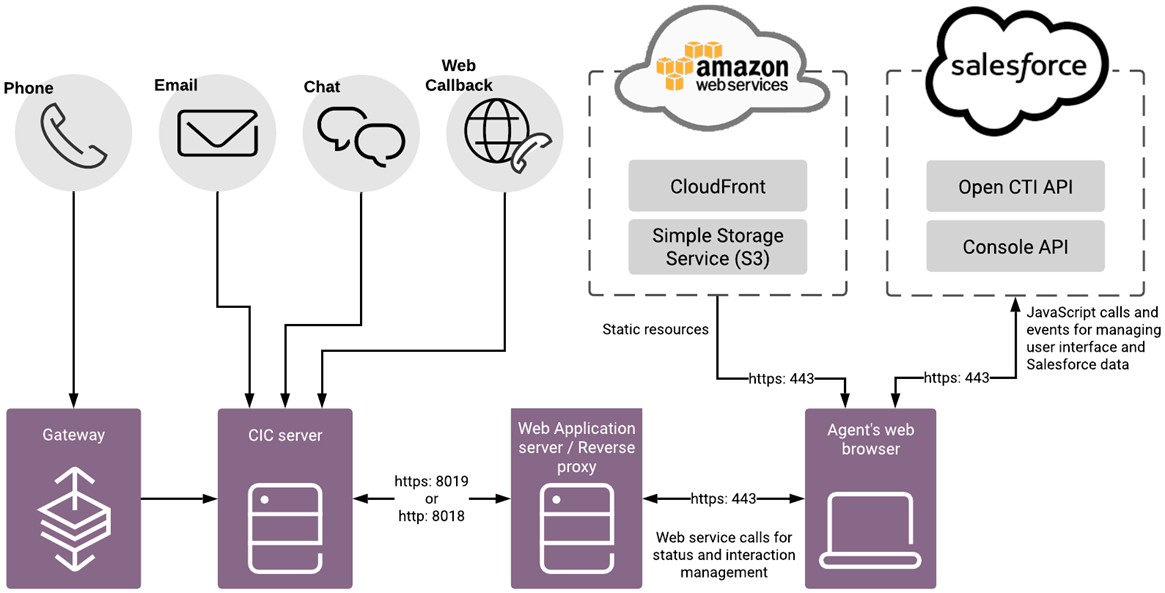

The following diagram shows the architecture for all components of the PureConnect for Salesforce integration.

PureConnect for Salesforce(PC4SF) client running within the Salesforce CTI connects to CIC Server using TLS version v1.2.
