Modify a Bar Gadget

You can modify a Bar gadget once it's added to a dashboard.

To modify a Bar gadget

  1. In the toolbar, click the tab of the dashboard to open and then click Edit. The dashboard displays in edit mode.

Dashboard - edit mode

  1. Click the arrow next to the Bar gadget title. The configuration options appear.

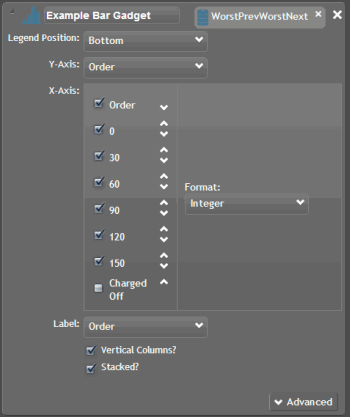

Bar gadget

  1. To change the title of the gadget, select the text in the gadget title box and then type a new title.

  2. To change the data source, do the following:

    1. In the gadget, click the X next to the data source to remove it.

    2. Drag and drop a different data source onto the Data Source icon Data Source icon.

  3. To move the gadget to a different column of the dashboard, drag and drop it to another column.

  4. To modify advanced options, click Advanced, modify the information as necessary, and then click Save.

  5. To delete the gadget from the dashboard, click the X in the upper right corner of the gadget.
