Contents

Data Collection Relationship

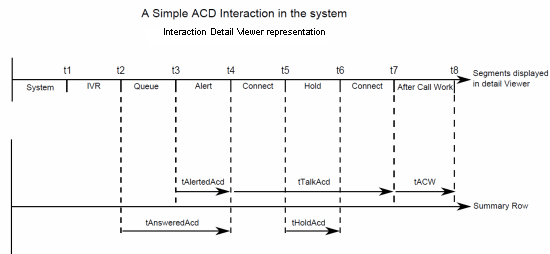

The diagram below explains how data collection in Interaction Detail Viewer correlates with legacy summary data collection.

Notes

The IWrkgrpQueueStats table has the summary of interactions. In the example above, we are assuming only one interaction is received, answered and completed with follow up work within the interval in question.

When there are multiple interactions, then the stats related to them are summarized according to their workgroup, media type, and report group. To co-relate them, it would be necessary to find corresponding Interaction Detail Viewer segments. The purpose of the above diagram is not to compare the Interaction detail viewer segment with IWrkGroup Queue statistics. Instead, it is to explain how the statistic collection is mapped between the two data collection modules.

Interaction Detail Viewer gives the snap shot of the interaction state changes in the CIC system. It does not consider agent activities other than the follow up event that happened as a result of an ACD interaction it tracked.

Also the duration in the Detail Viewer is linear and not overlapped with each other, whereas IWrkGrpQueueStats are overlapped with each other. When there are multiple interactions with complex interaction scenarios such as transfers and conferences involved, breaking the summary statistics into detail segments is not intuitive.
